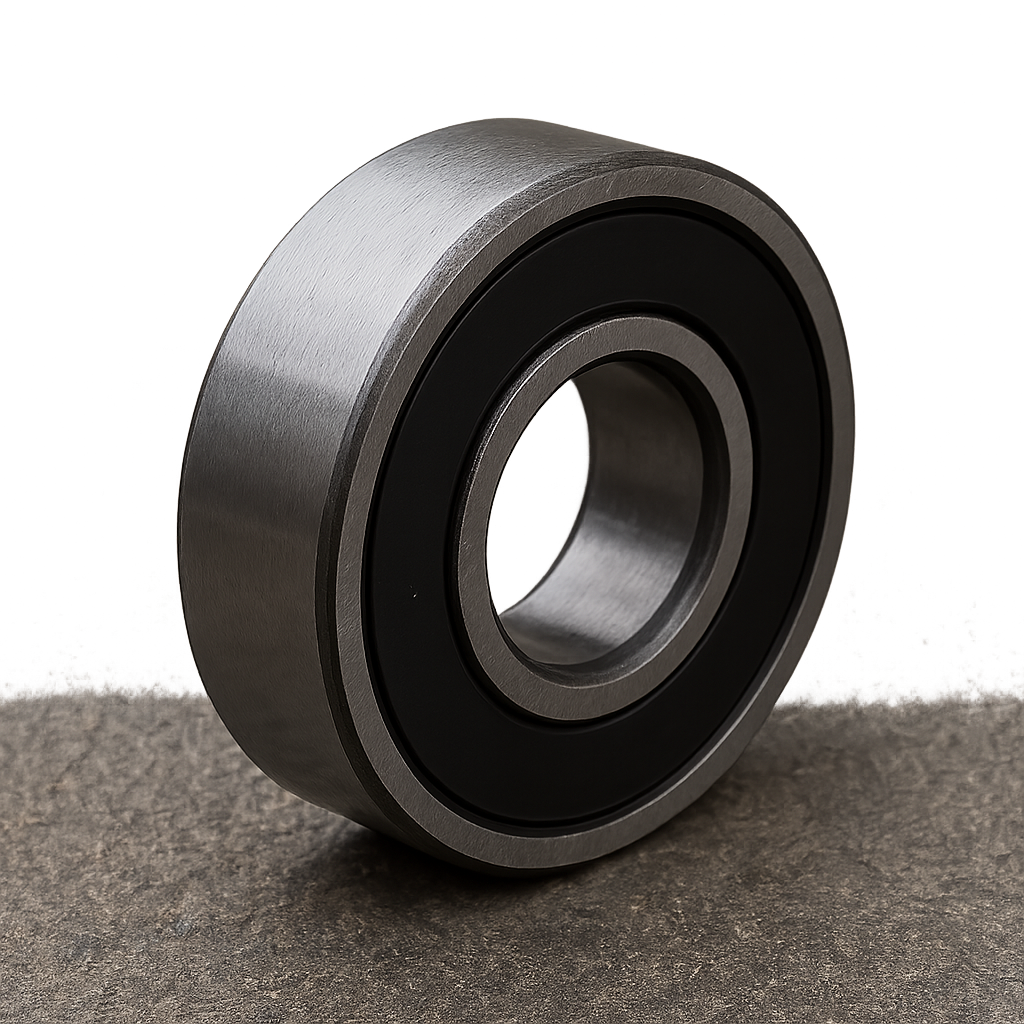

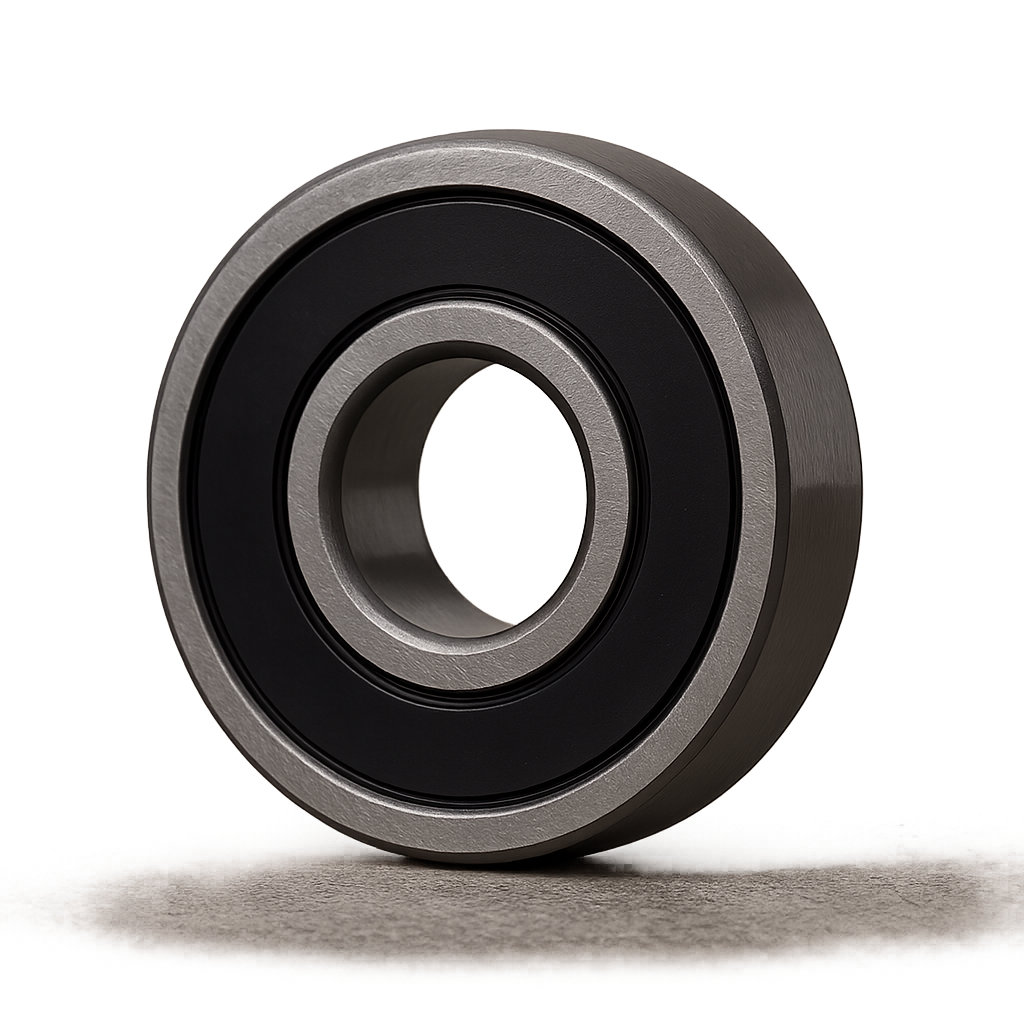

डीप ग्रूव बॉल बेयरिंग 6204-2RS
डीप ग्रूव बॉल बेयरिंग 6204-2RS
पिकअप उपलब्धता लोड नहीं की जा सकी
The 6204-2RS deep groove ball bearing is a workhorse 20 mm bore sealed bearing — one of the most commonly replaced bearings in Indian motors, agricultural equipment, water pumps, and light industrial machinery. This pack of 10 is sized for maintenance technicians and repair shops who fit this size weekly.
The 2RS designation means rubber seals on both sides — the bearing is filled with high-temperature lithium grease and sealed for life, so no maintenance lubrication is required. This makes it the right choice for damp, dusty, or contamination-prone environments such as outdoor pumps, conveyors, and agricultural drives.
Specifications
| Bore (d) | 20 mm |
|---|---|
| Outer diameter (D) | 47 mm |
| Width (B) | 14 mm |
| Dynamic load (Cr) | 12.7 kN |
| Static load (Cor) | 6.6 kN |
| Max speed (greased) | 3,000 rpm |
| Closure | 2RS — rubber seal both sides |
| Material | GCr15 chrome bearing steel |
| Pack size | 10 pieces |
Key features
- Sealed for life with lithium grease — no lubrication needed
- Rubber seals exclude dust, water spray, and fine particulates
- Suited to wet, dusty, and outdoor applications
- Hardened and ground raceways for low-vibration, quiet operation
- Standard ISO dimensions — direct replacement for any 6204-2RS spec
Common applications
1 HP and 2 HP induction motors, household water pumps, washing machine drum shafts, agricultural sprayers, ceiling fan motors, lawn mower wheels, paint mixers, e-rickshaw differential housings, gearbox idler shafts, and small conveyor rollers.
Cross-reference
SKF 6204-2RSH · NSK 6204DDU / 6204VV · NTN 6204LLU · FAG 6204-2RSR · NBC 6204-2RS · KOYO 6204-2RS · ZKL · ISO 15:2011 spec.
Why buyers choose TBF
- Genuine bearing steel and consistent C0 internal clearance
- GST invoice on every order
- Same-day dispatch from Faridabad for orders placed before 4 PM IST
- 7-day replacement on manufacturing defects
- WhatsApp support for fitment confirmation
Looking for 6204-ZZ (metal shielded) or a different pack size? We stock all variants — message us for custom orders.
